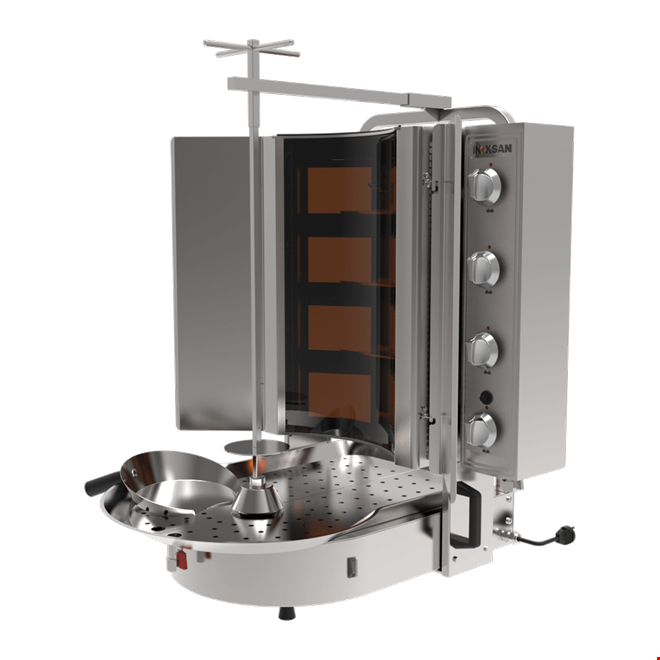

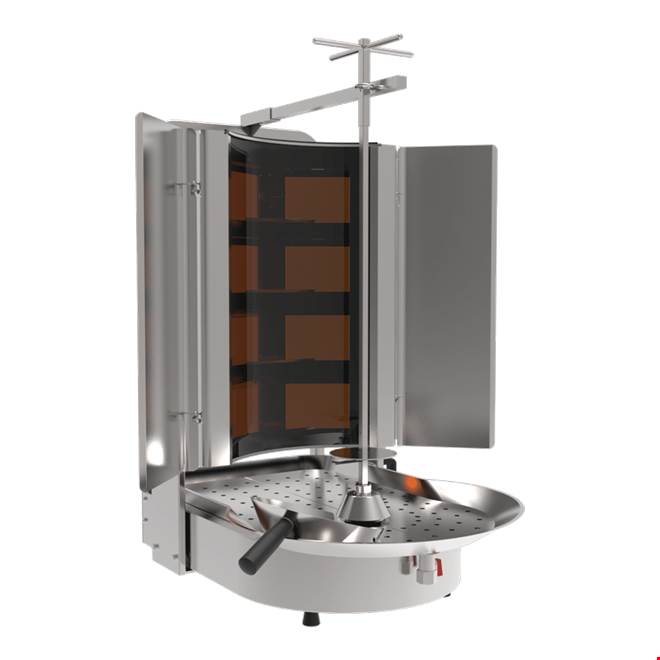

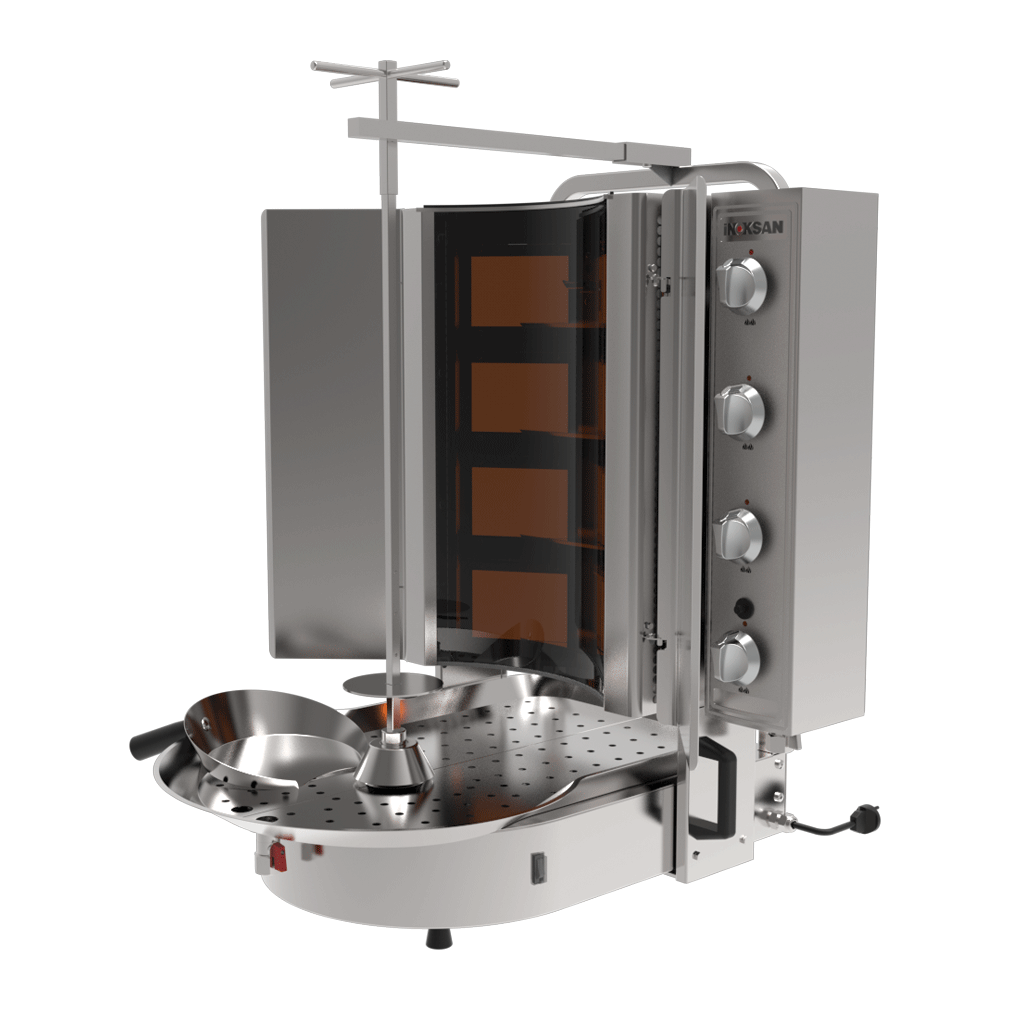

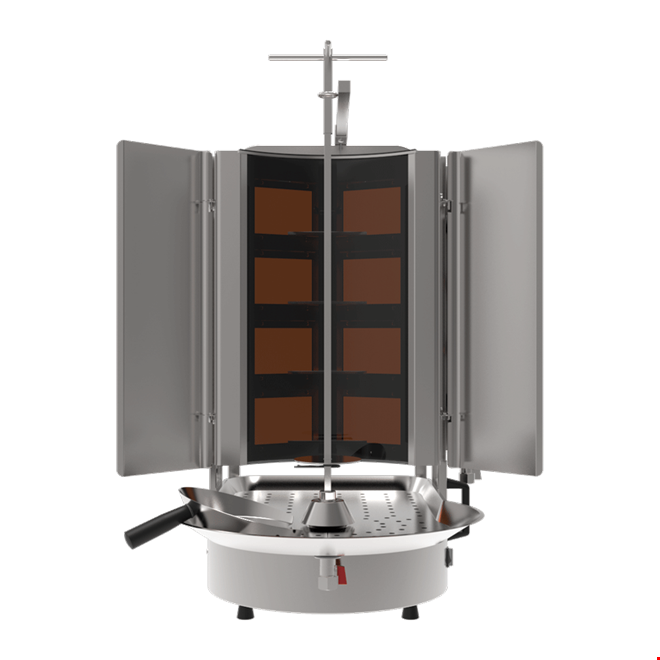

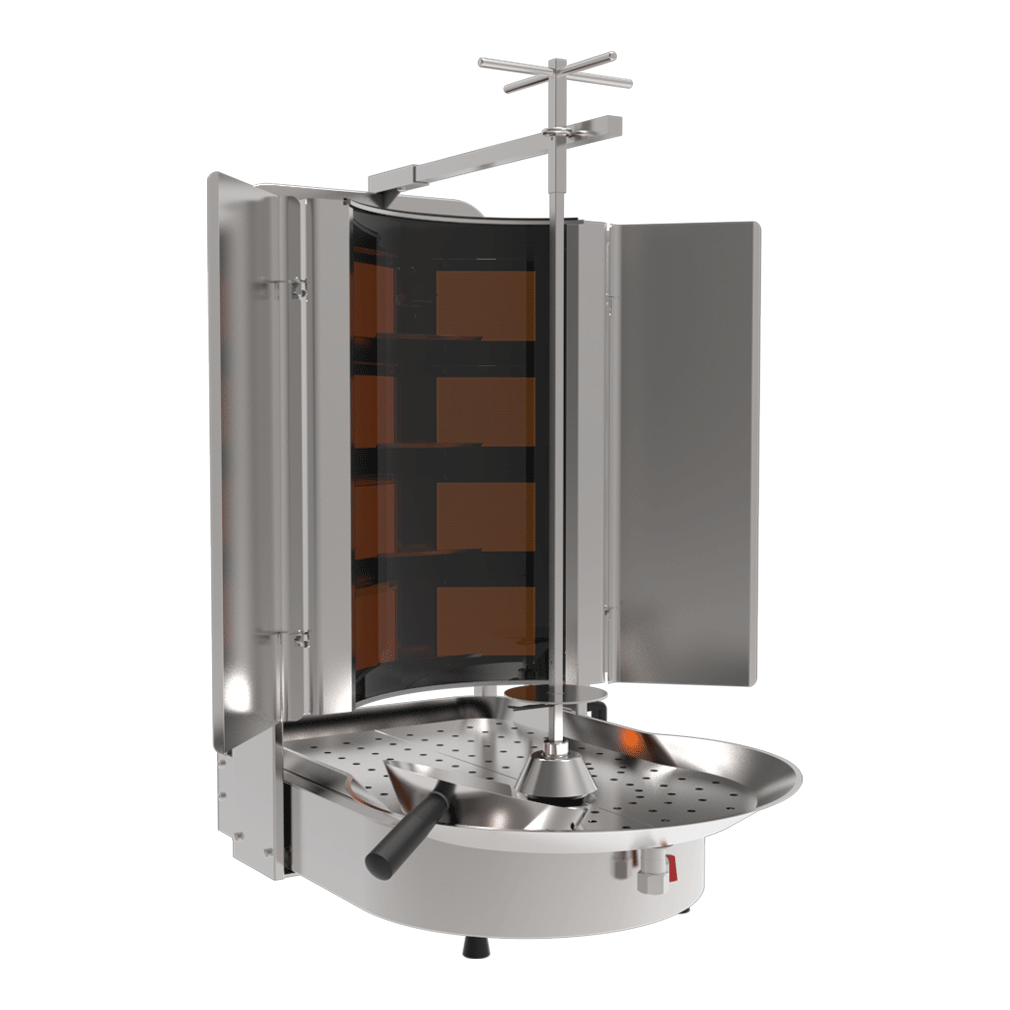

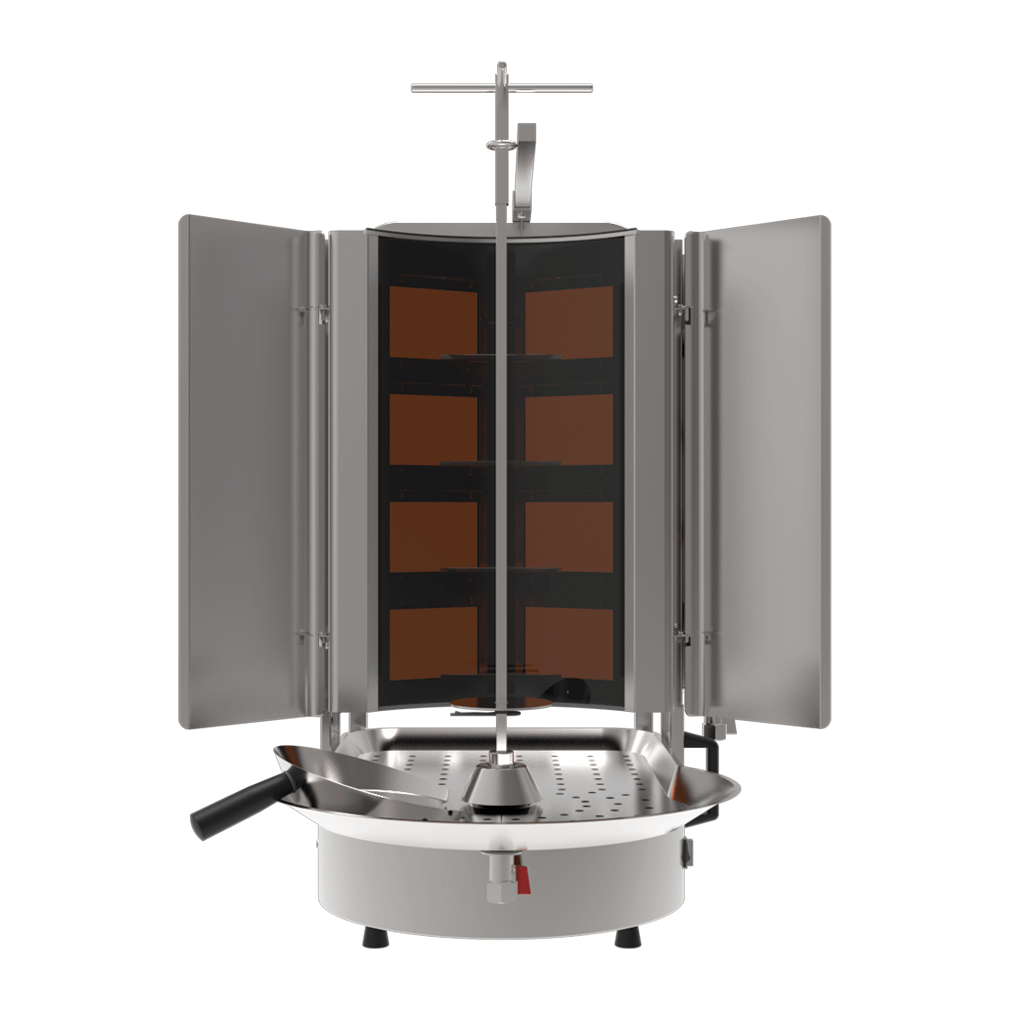

İNOKSAN PDG 400 - Doner Kebab Machine
Puan 4.8/5 Yorum 256
13.04.2025
4.2/ 5

Features

  • Width: 48 cm
  • Depth: 77 cm
  • Height: 100 cm
  • Device capacity: 60-75 Kg
  • Gross weight: 53 Kg
  • Net weight: 53 Kg
More Information More Information

General features

Width 48 cm
Depth 77 cm
Height 100 cm
Device capacity 60-75 Kg
Gross weight 53 Kg
Net weight 53 Kg

Functional Features

Cooking capacity 60-75 Kg
Doner Capacity 60-75 Kg
Skewer Length 577 mm

Technicial Specifications

Electric Input 220-230V AC
Gas Inlet 1/2 "
Total power 16 Kw
Max Throttle Power 16 Kw
Frequency 50-60 Hz
Nominal Gas Pressure (NG)(G20) 20 mbar
radian number 4 adet

Accessory

GENERAL FEATURES
* Option of rotating the skewer to the left or right,
* Knob will operate main radiant with full flame in
position 1, main and auxiliary radiants with full flame in
position 2 and both radiants in half flame in position 3..
* All outer surfaces except the ones in contact with meat
made of AISI 430 SB steel.
* Rotary skewers capable of operating in inclined
position.
* Capable of operating under different gas pressures.
* Shovel included in the equipment.
* Oil leakage into the motor prevented by coating
designed specially.
* Rotating the skewer manually in case of power failure ,
* Possibility of movable top body,
* Adjustable feet,,
* Independent control of the motor from the equipment,

TECHNICAL SPECIFICATIONS

Total Gas Power

16

Kw

Gas Inlet

1/2

Inc

Gas Pressure

20

mbar

Capacity of Doner Kebab Machine

60-75

Kg

Motor Power Inlet

220-230V AC

50-60Hz

V - Hz.

Motor Power

8

Ad.

Net Weight

53

Kg

Skewer Length

577

mm

GAZLI DÖNER OCAĞI KULLANIM KILAVUZU
GAZLI DÖNER OCAĞI KULLANIM KILAVUZU
