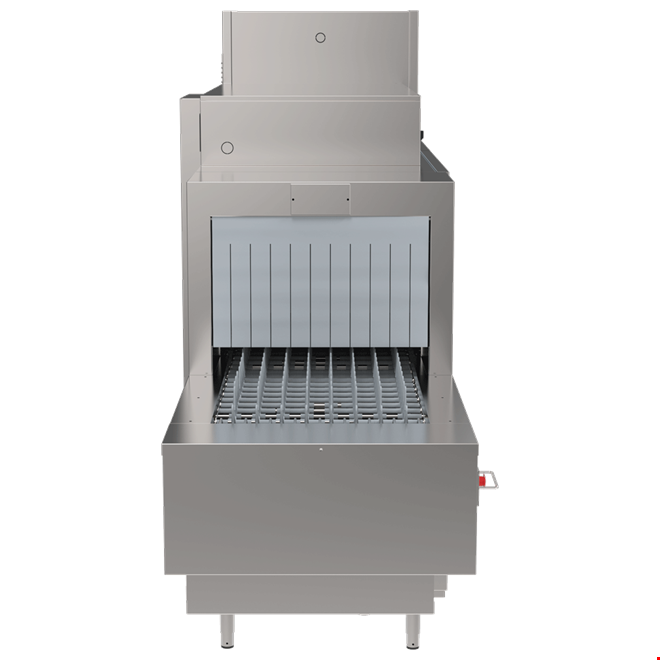

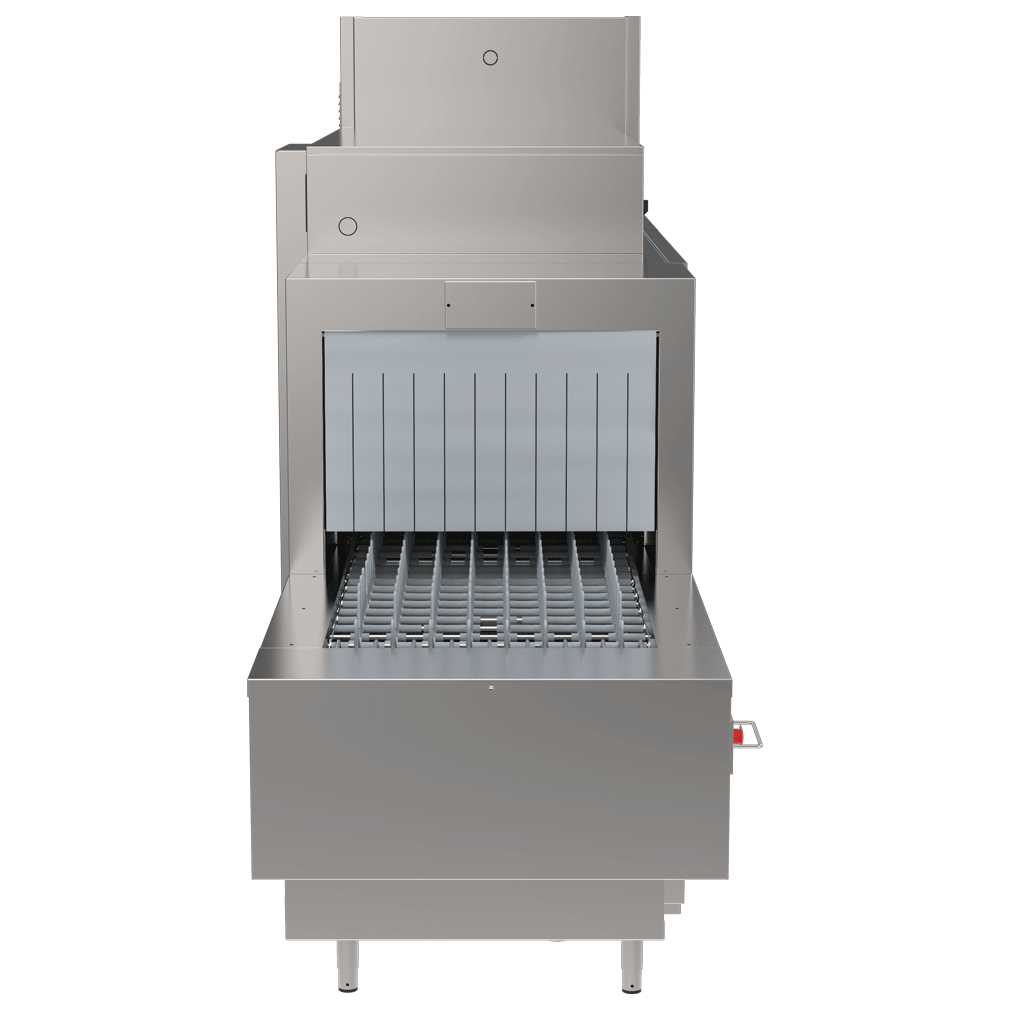

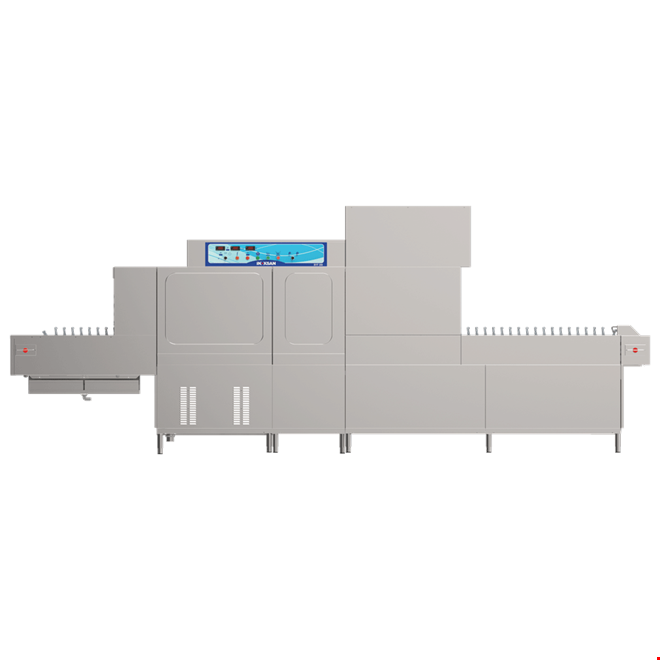

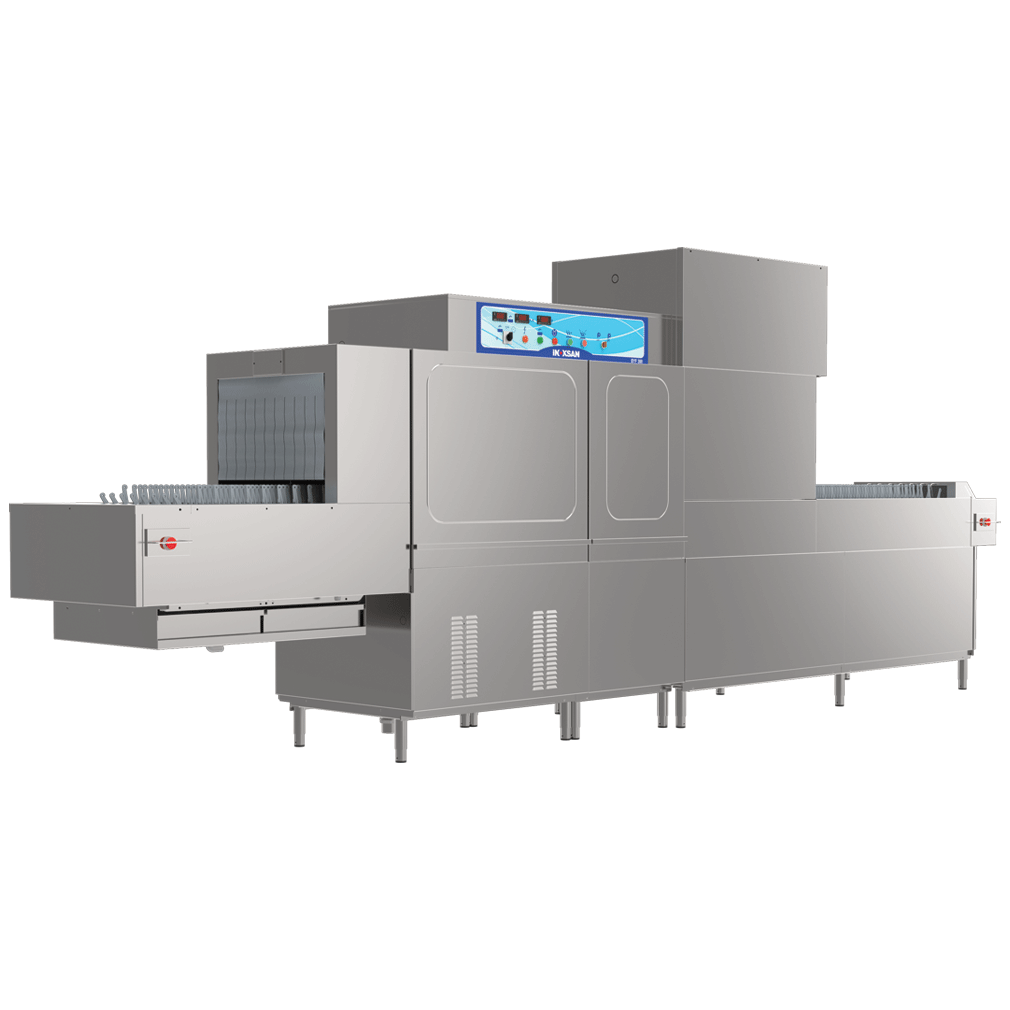

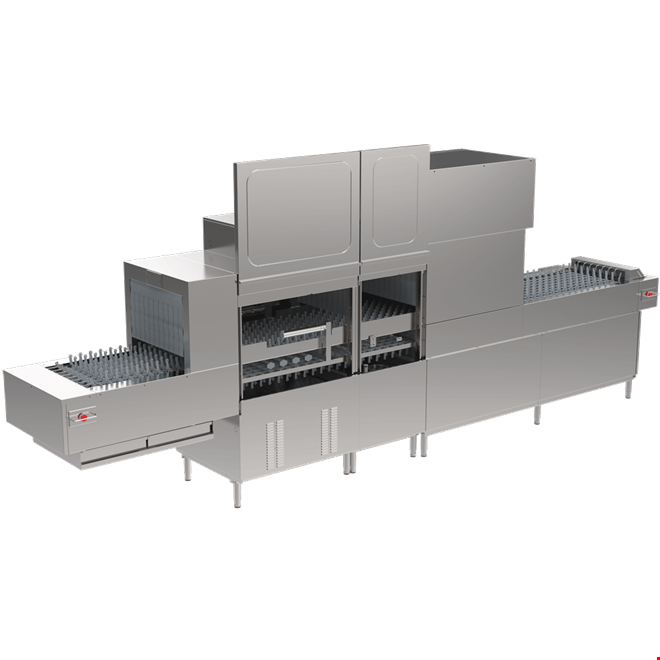

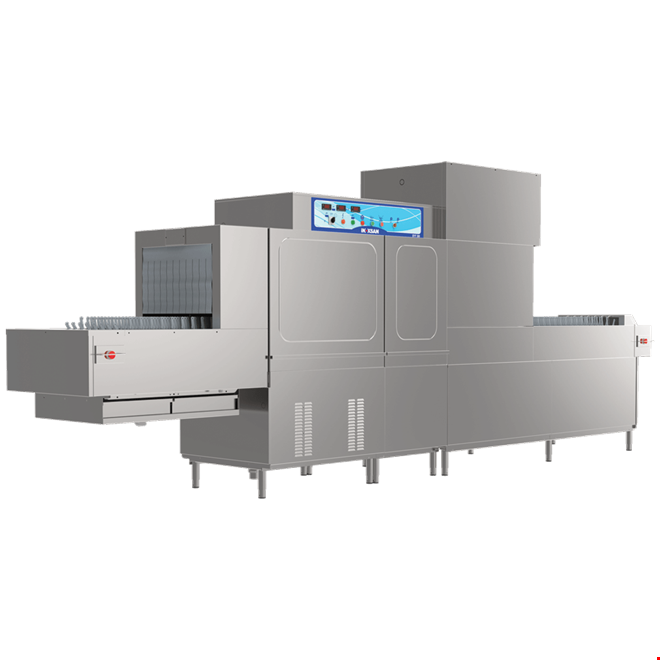

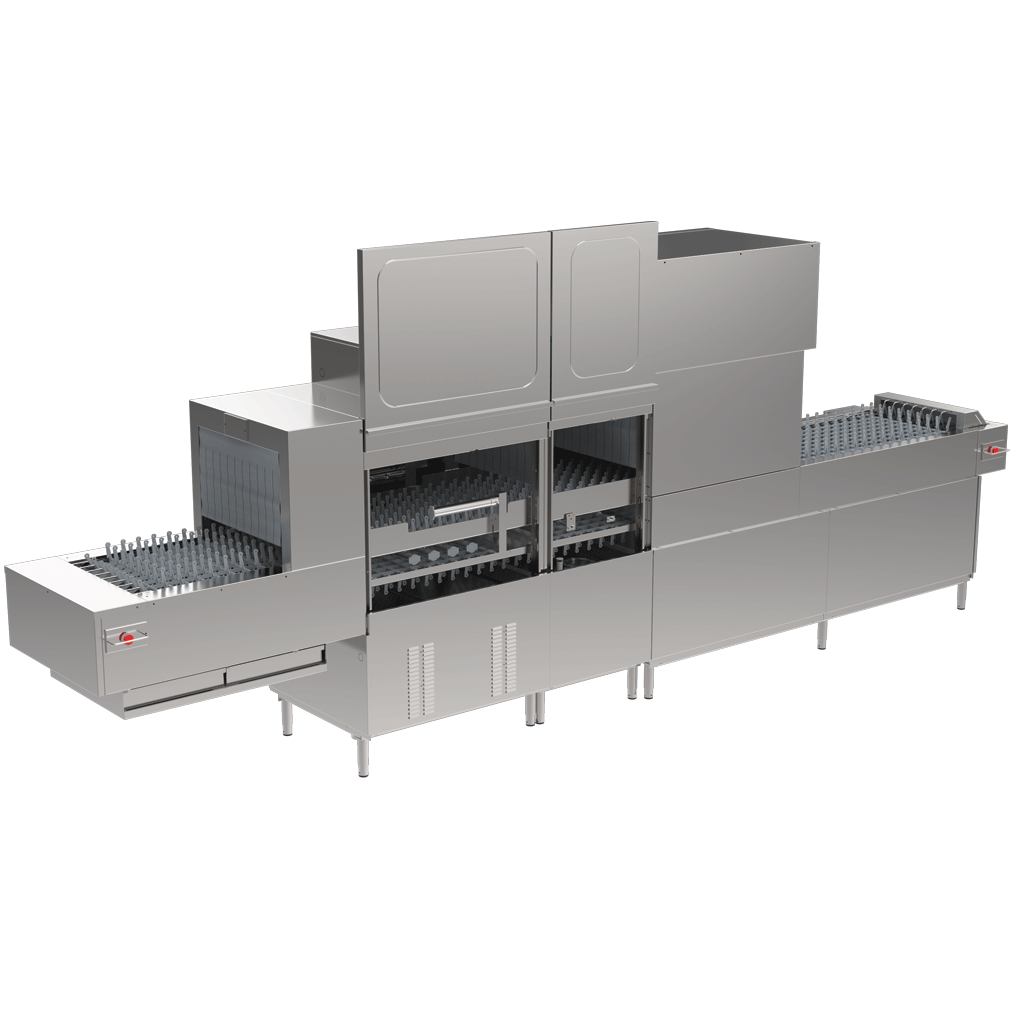

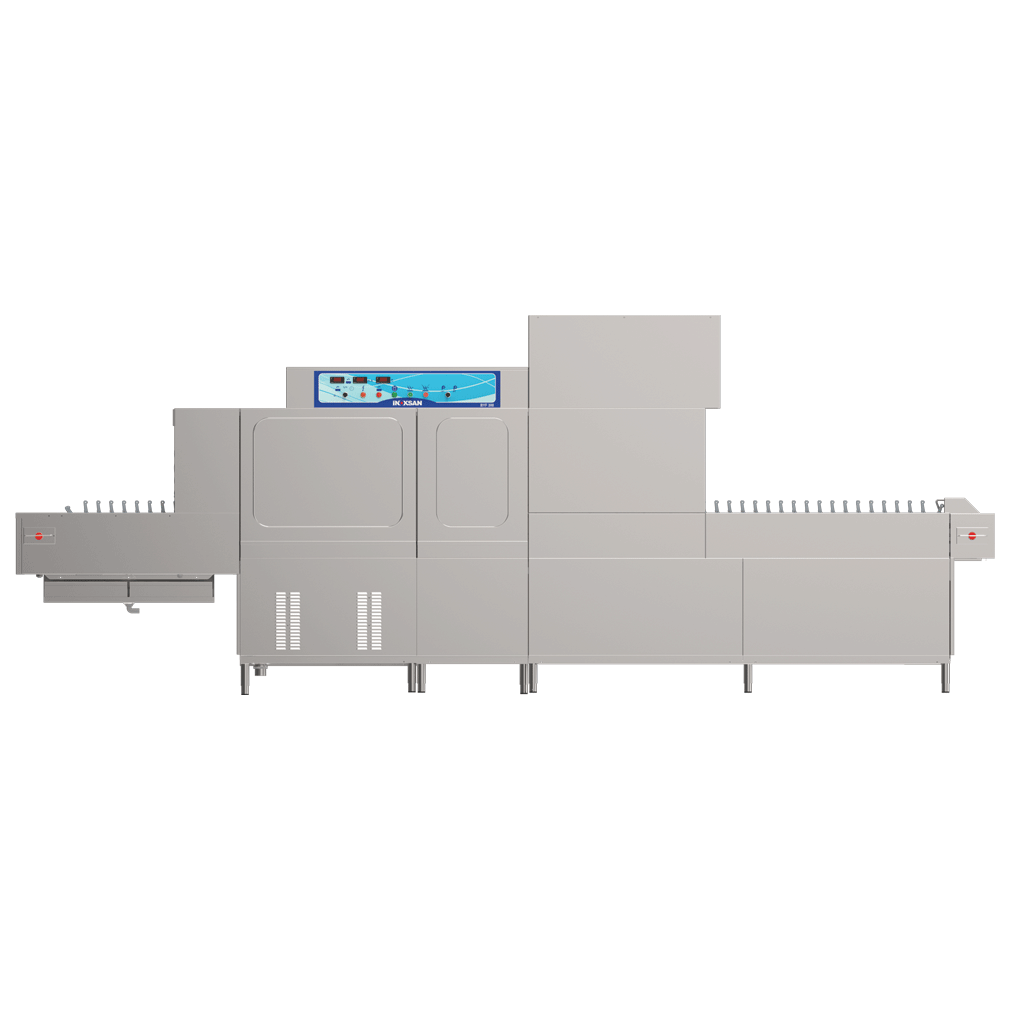

BYF 300L/R – Flight Type Dishwasher Conveyor Dishwashers

Water inlet	3/4	inches
Water pressure	2-4	Bar
Electric inlet	380-50	V-Hz.
Washing Motor Power	3	kW
Durulama pompası gücü	0.19	kW
Max. Electric Power	39,5	kW
Frequency	50-60	Hz
Water consumption	480	Lts/hour
Tank Power	12	kW
Boiler Power	24	kW
Reducer motor power	0,37	kW
Washing Temperature	55	°C
Rinsing Temperature	85	°C
Water inlet temperature	45-50	°C
Boiler volume	30	lts
Main washing tank Water volume	125	lts
Plate capacity	3000	pcs/h
Tray capacity	1500	pcs/h
Plate Diameter Max.	360	mms
Max . utensil height	400	mms
Cable section	4x16	mm2

-->

GENERAL FEATURES

* Electromechanically controlled,

* Washing module with 11 washing arms ,

* Duo rinsing system and internal rinsing pump,

* Easy to dismount/mount washing/ rinsing arms and filters for cleaning purposes ,

* Possibility of washing kitchen utensils with a height of max. 400 mms ,

* Safety system to stop the operation of the dishwasher when the door is opened,

* Rack dimensions 500x500 mms ,

* Temperature safety thermostats of boiler,

* Temperature safety thermostats of well,

* Parts in contact with water manufactured of AISI 304 Cr-Ni s/s sheet,

* 2 pcs cutlery rack ,

* Optionals: Detergent pump, rinse aid pump and heat recovery system ,

*Water level in the tank controlled automatically by presosstat ,

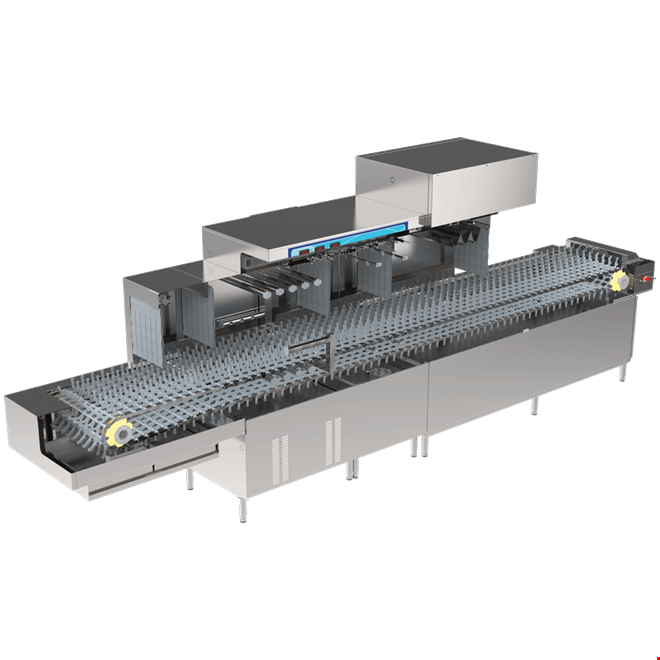

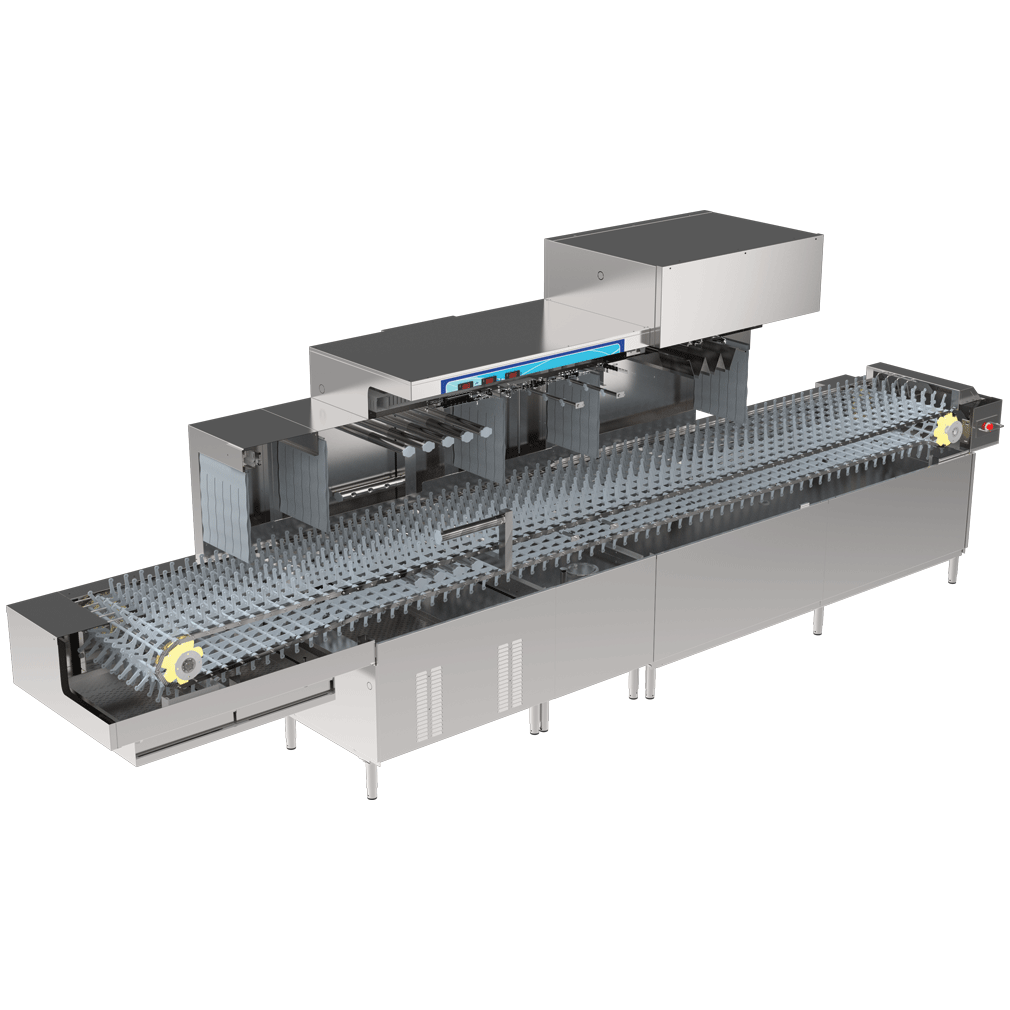

*Pallet type belt system for the transportation of the soiled utensils with a reducer of speed increase ,

*Digital thermometers displaying the water temperature ,

*Modular system (Entry, washing, duo rinsing, drying, exit)

TECHNICAL SPECIFICATIONS

Water inlet	3/4	inches
Water pressure	2-4	Bar
Electric inlet	380-50	V-Hz.
Washing Motor Power	3	kW
Durulama pompası gücü	0.19	kW
Max. Electric Power	39,5	kW
Frequency	50-60	Hz
Water consumption	480	Lts/hour
Tank Power	12	kW
Boiler Power	24	kW
Reducer motor power	0,37	kW
Washing Temperature	55	°C
Rinsing Temperature	85	°C
Water inlet temperature	45-50	°C
Boiler volume	30	lts
Main washing tank Water volume	125	lts
Plate capacity	3000	pcs/h
Tray capacity	1500	pcs/h
Plate Diameter Max.	360	mms
Max . utensil height	400	mms
Cable section	4x16	mm2
