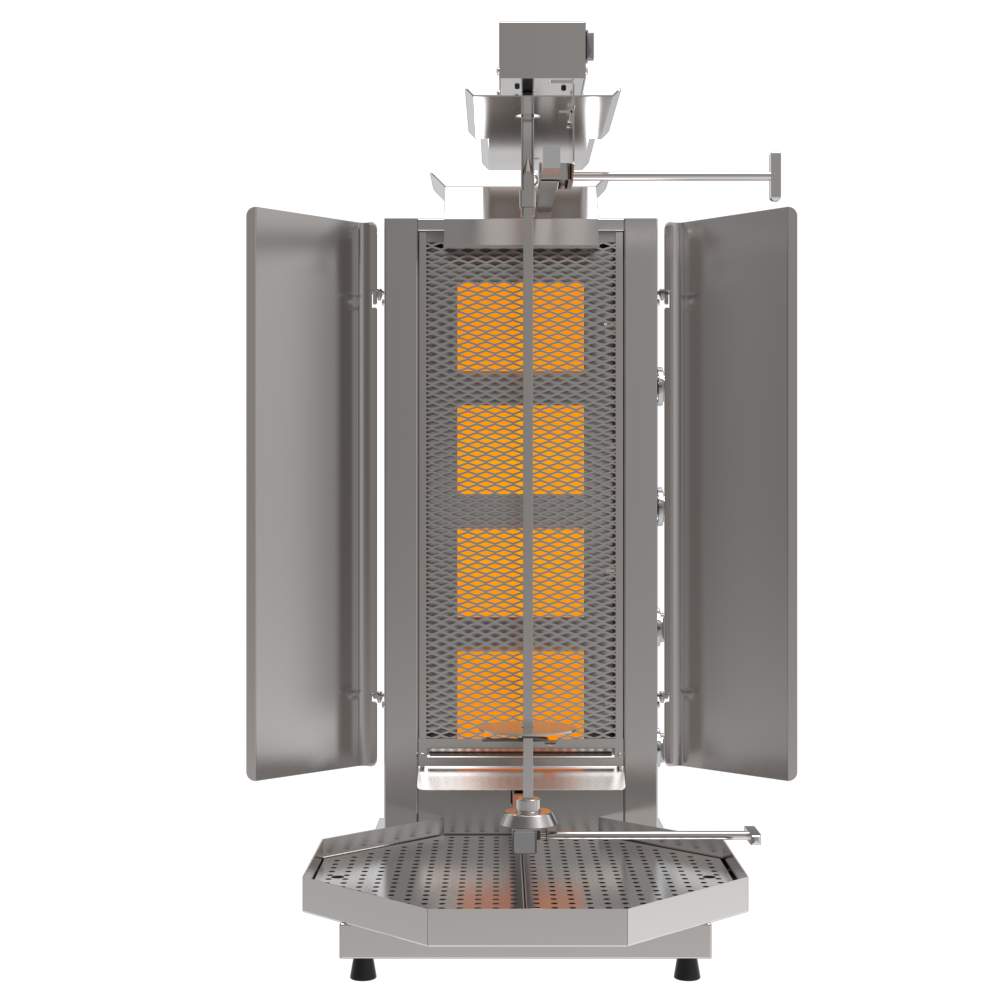

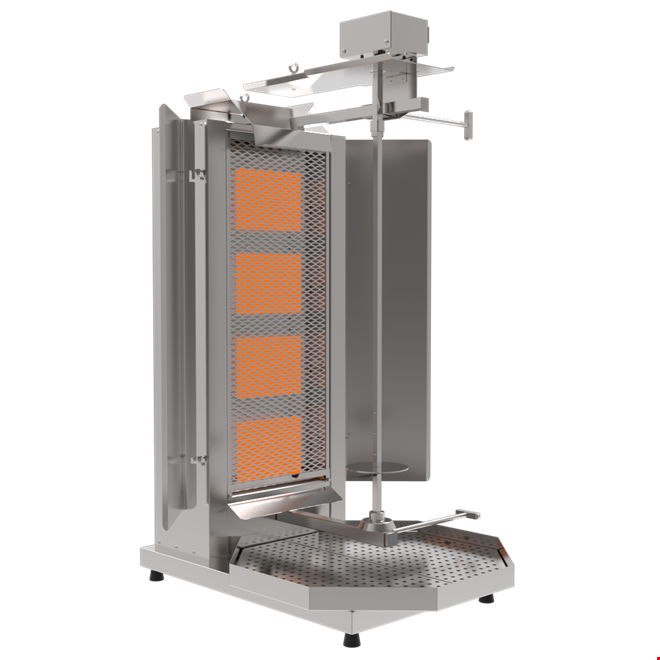

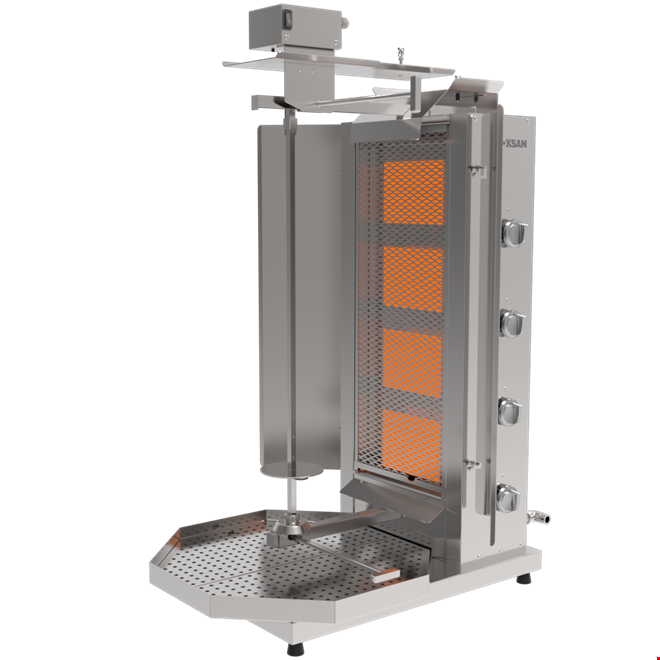

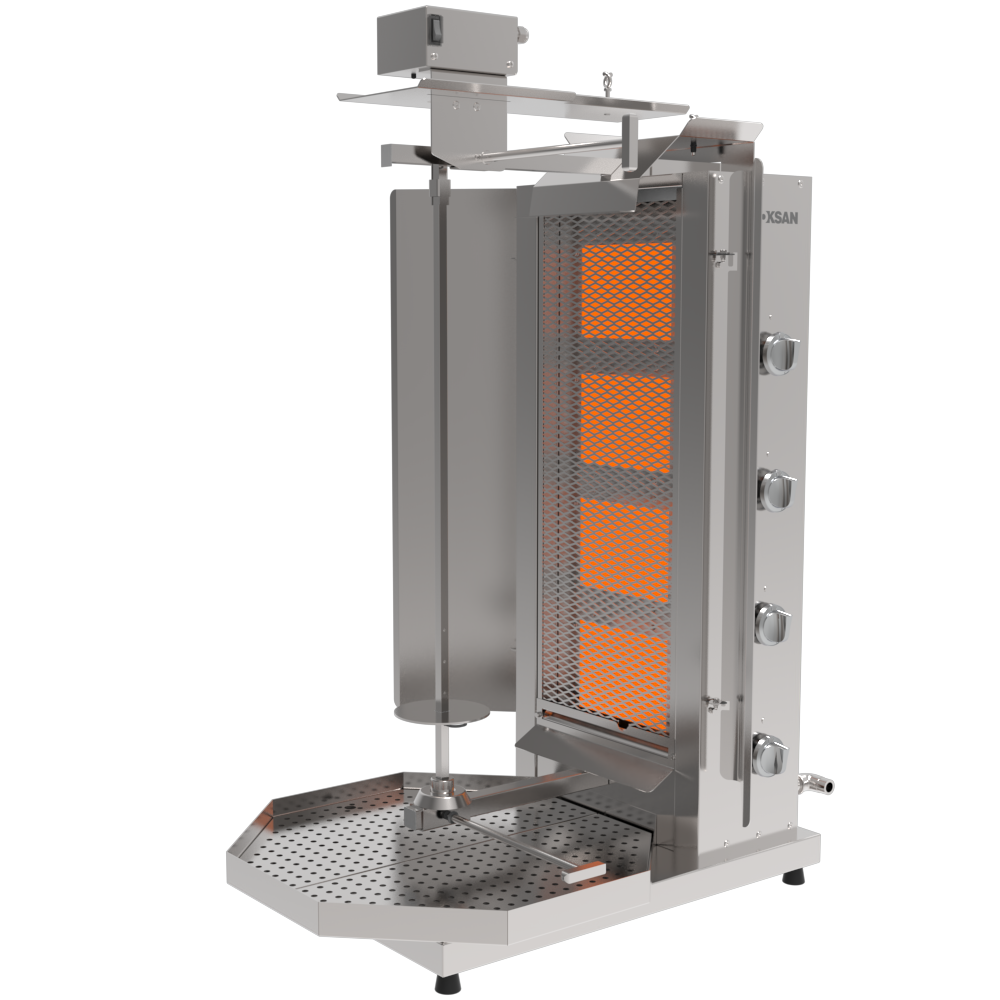

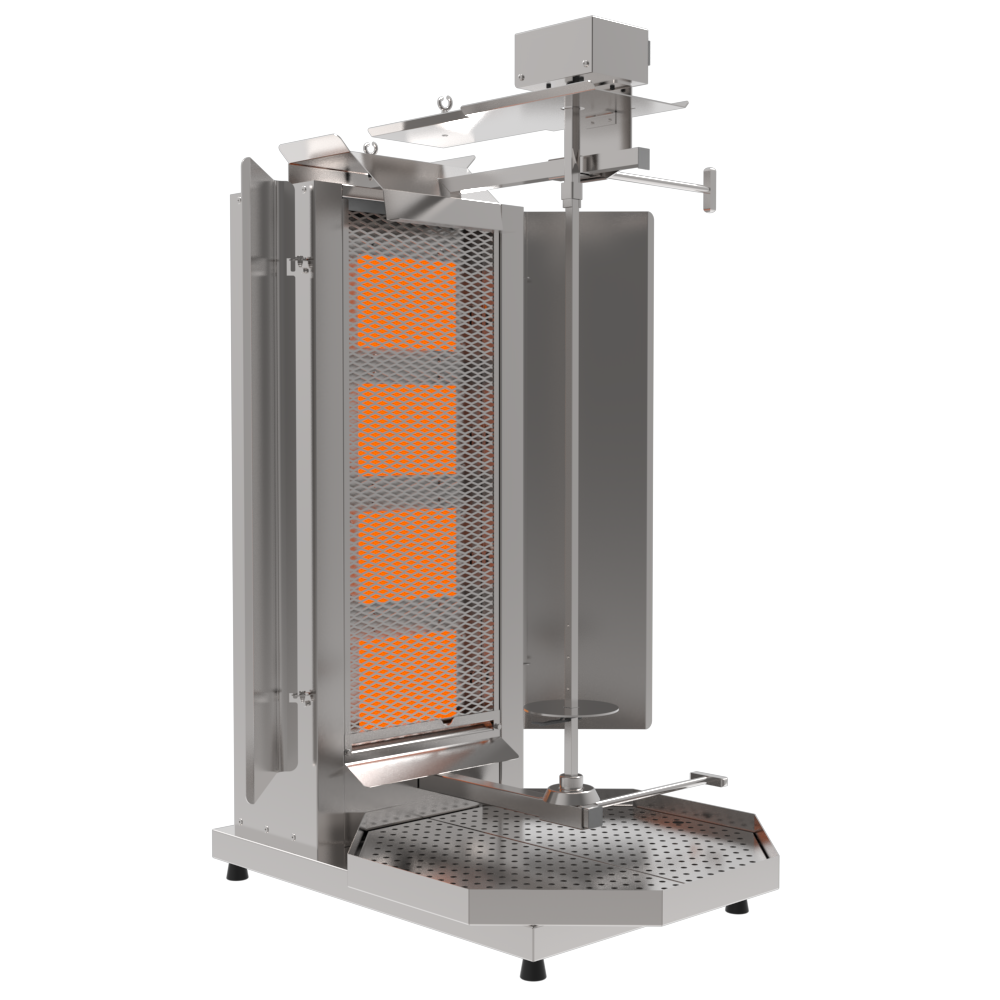

PDG 402 - GAS WITH TOP MOTOR AND ECONOMICAL DONER KEBAB MACHINE
Other Cooking
Features
- Width: 52 cm
- Depth: 73 cm
- Height: 112 cm
- Device capacity: 40-60 Kg
- Gross weight: 38 Kg
- Net weight: 38 Kg
Other Cooking
- Width: 52 cm
- Depth: 73 cm
- Height: 112 cm
- Device capacity: 40-60 Kg
- Gross weight: 38 Kg
- Net weight: 38 Kg
General features |
|
| Width | 52 cm |
| Depth | 73 cm |
| Height | 112 cm |
| Device capacity | 40-60 Kg |
| Gross weight | 38 Kg |
| Net weight | 38 Kg |
Functional Features |
|
| Tray Usage Area | 520x520x40 mm |
| Doner Capacity | 40-60 Kg |
| Skewer Length | 635 mm |
Technicial Specifications |
|
| Electric Input | 220-230V AC |
| Gas Inlet | 1/2" |
| Total power | 12 Kw |
| Max Throttle Power | 12 Kw |
| Frequency | 50-60 Hz |
| Nominal Gas Pressure (NG)(G20) | 20-25 bar |
| radian number | 4 adet |
Accessory |
GENERAL FEATURES
* Option of rotating the skewer to the left or right ,
* Knob will operate main radiant with full flame in position 1, both radiants in half flame in position 2.
* All outer surfaces except the ones in contact with meat made of AISI 430 SB steel.
* Rotary skewers capable of operating in inclined position.
* Adjusting feet ,
* Equipped with 4 pcs of 3kw radiants
* Capable of operating under different gas pressures.
* Rotary kebab machine wings can be given as an option.
TECHNICAL FEATURES
|
Toplam Gas Power |
12 |
Kw |
|
Gas Inlet |
1/2" |
inç |
|
Gas Pressure |
20/25 |
mbar |
|
Tray Area |
520x520x40 |
mm |
|
Capacity of Doner Kebab Machine |
40-60 |
Kg |
|
Electric Inlet |
220-230V AC 50-60 |
V - Hz. |
|
Skewer Lenght |
635 |
mm |
|
Net Weight |
38 |
Kg |
|
Number of Radian |
4 |
|
